See everything
360° Panoramic View
Seaview delivers continuous 360° panoramic vision in live 4K. No blind spots, no guesswork, just complete situational awareness.
360° Yacht Camera System No Blind Spots · No Mechanical Pan
Seaview delivers continuous live 4K video from a single unit at the mast. Complete 360° situational awareness for the bridge team, continuous perimeter security, and a permanent voyage record, all from one elegantly integrated unit, without a single moving part.
Every moment of your voyage unfolds in real time. From bow spray at speed to dolphins off the stern and a harbour approach at golden hour, Seaview captures it all simultaneously, from every direction. When you want to revisit the moment, full 4K panoramic video is available on demand, preserving stunning sunsets, jaw-dropping vistas and landfalls in extraordinary detail.
Recording
Voyage Archive
Multiple Cameras
Parts
Captains, engineers and shipyard professionals across the superyacht sector confirmed exactly what Seaview was built to solve.
Survey of 30m+ superyacht professionals · 2025Panoblu 360° Walkthrough
See the Panoblu 360° system in action. This walkthrough covers live view navigation, docking assistance, bridge visibility and the full situational awareness interface, everything the system delivers from a single mast unit.
Complete Situational Awareness
For Your Superyacht
Range Awareness Display
Distance to Everything
At a Glance
RAD overlays real-time distance measurements across the full 360° panorama. Every vessel, every obstacle, every channel marker: range calculated continuously from waterline to horizon.
Continuous Calculation
Range updates across every bearing in real time. No manual targeting required.
Waterline to Horizon
From berth walls at close quarters to vessels on the horizon, without reconfiguring.
Recorded with the Image
Distance data archived alongside every frame of the panoramic voyage record.
Detection Range
See it first, in every direction
From a tanker on the horizon to a swimmer alongside, see how far Panoblu spots every target across the full 360° view, day and night, with live range from RAD.
See the full detection rangeAIS targets and bridge data, on the live view
Seaview reads your vessel's NMEA 2000 backbone and overlays it straight onto the 360° panorama. Heading, course and speed orient the view to true north, and AIS contacts are drawn as labelled targets at their real bearing and range, so a name on the screen lines up with the vessel you can actually see.
Because the panorama already covers every direction at once, targets stay anchored in place as you look and zoom around the scene, with no need to slew a camera to chase a contact.
- Heading, COG & SOG -- the view locks to true bearing
- AIS targets -- labelled by name, bearing and range
- RAD range rings -- distance to every contact at a glance
See to the horizon -- then zoom right in
Seaview zooms 36× into the live 360° panorama, down to an 11° field of view. The zoom is digital, so there are no moving parts to point or wear out: you can look all the way to the horizon in any direction at once, with detail gradually decreasing the further out you go.
Shown with sample AIS data for demonstration. Live targets and own-ship data populate automatically once Seaview is connected to the vessel's NMEA 2000 backbone; radar and AIS feeds integrate via ONVIF or third-party platforms.
Seaview Specifications
| Optical | |
| Resolution | 8K capture · 360° panoramic · 4K live playout |
| Sensors | 2 visible light sensors · 2 lenses |
| Coverage Horizontal | 360° continuous panoramic |
| Coverage Vertical | 110° vertical · 360° horizontal continuous |
| Frame Rate | Up to 25fps |
| Display | 360° panoramic · 2:1 aspect ratio · 36x digital zoom · down to 11° field of view |
| Operational | |
| Control | Browser-based touch UI · WebRTC live stream · Windows, Mac, Linux, iOS, Android |
| Storage | 2TB SSD integrated (≈ 2 months continuous archive) · optional 8TB+ onboard server · cloud backup available |
| Power | 90W peak · 60–80W operating · PoE++ IEEE 802.3bt Type 4 · single Cat 6A cable |
| Operating Temp | -20° to +50°C |
| Physical | |
| Moving Parts | ✓ None · no mechanical pan or tilt |
| Ingress Protection | IP68 |
| Dimensions | 282 × 280 × 207mm · size variants available BTO to suit mast designs |
| Weight | ~4.5 kg (configuration dependent) |
| Housing | Marine-grade aluminium core · carbon-fibre cover · oblate spheroid form · RAL 9016 standard |
| Mast Compatibility | Up to 130mm standard · larger built-to-order · survey-led install · CAD package per vessel |
| Cooling | Advanced internal cooling fan |
| Panoblu Seaview · Correct as of May 2026 · Subject to change without prior notice · Contact explore@panoblu.com for full technical documentation | |
Product Documentation
Unlock the Live Demo
Enter a few details to open the interactive Panoblu 360° Seaview demo.
Opens the interactive demo in this window. Your details are used only to arrange access and will not be shared.
Relive Every Moment

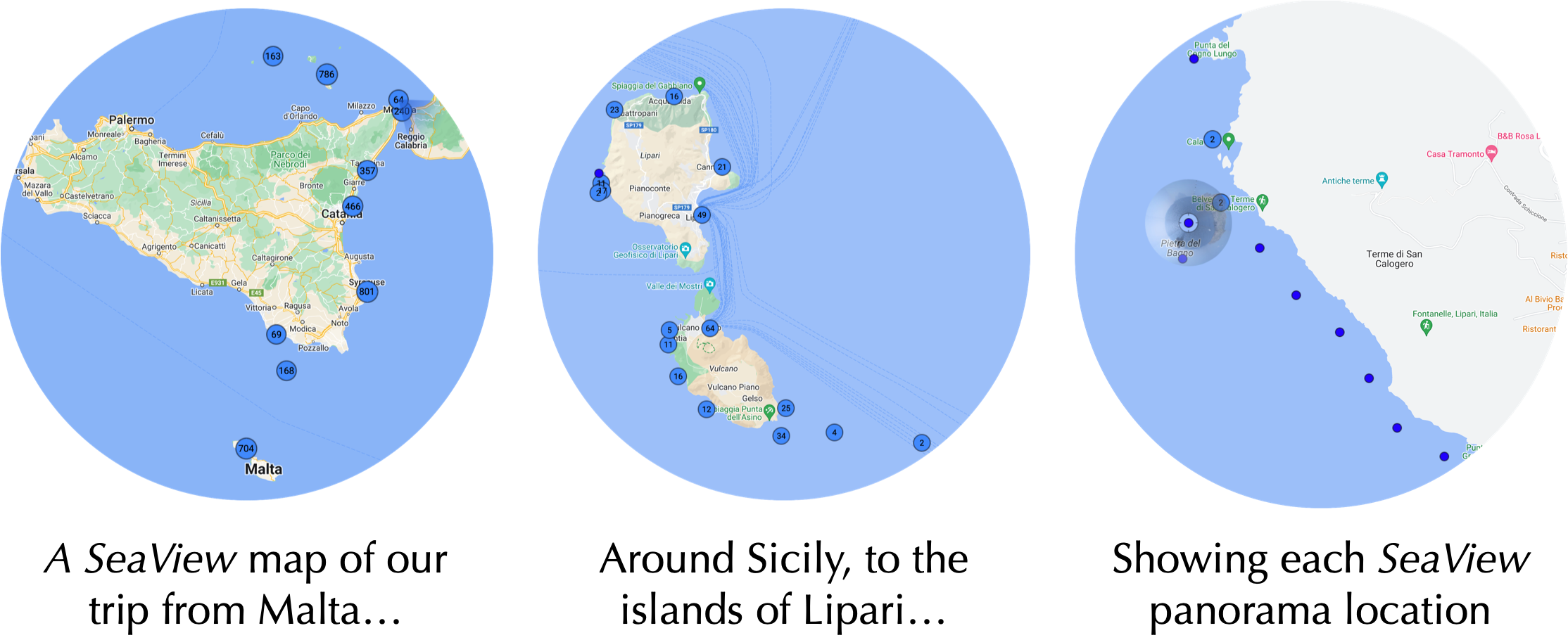

Every position from every passage, pinned and searchable. Tap any point to return to the exact panorama captured there.
Every Location Pinned
Full voyage track, navigable at any time.
Return to Any Moment
Tap any pin to load the panorama from that position.
All Devices
Bridge, tablet, or owner's device. On demand.
"360° awareness changes how you work the bridge. You see everything, all the time, without always needing someone to check."
— Captain, 58m Yacht
Explore Further
More About Panoblu
See in complete darkness, fog or smoke. Full 360° thermal infrared that assists with night watch, man overboard detection and perimeter surveillance.
Explore Panoblu IR →Server and Cloud
Explore the hardware, architecture and technical capabilities behind the Panoblu system.
See the Full System →
